Developer Guide

• Acknowledgements
• Setting up, getting started
• Design
  • Architecture
  • UI component
  • Logic component
  • Model component
  • Storage component
  • Common classes
• Implementation
  • [Proposed] Undo/redo feature
    • Proposed Implementation
    • Design considerations:
  • [Proposed] Data archiving
• Documentation, logging, testing, configuration, dev-ops
• Appendix: Requirements
  • Product scope
  • User stories
  • Use cases
  • Non-Functional Requirements
  • Glossary
• Appendix: Instructions for manual testing
  • Launch and shutdown
  • Deleting a person
  • Saving data
  • Target User
  • Value Proposition

---

Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}
• Images of some developers taken from Portrait placeholder.png, created by Andomedium and edited by Jajobi, retrieved from Wikipedia, used under CC0 1.0 Universal.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

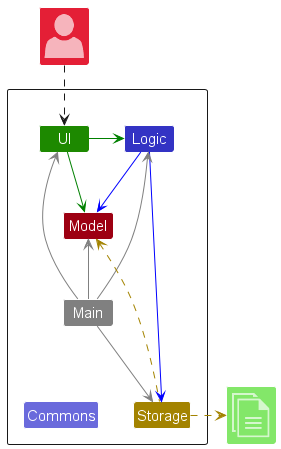

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

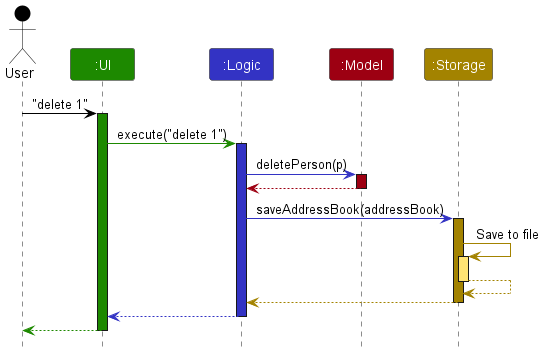

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

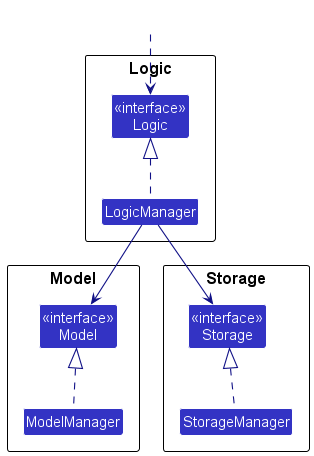

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

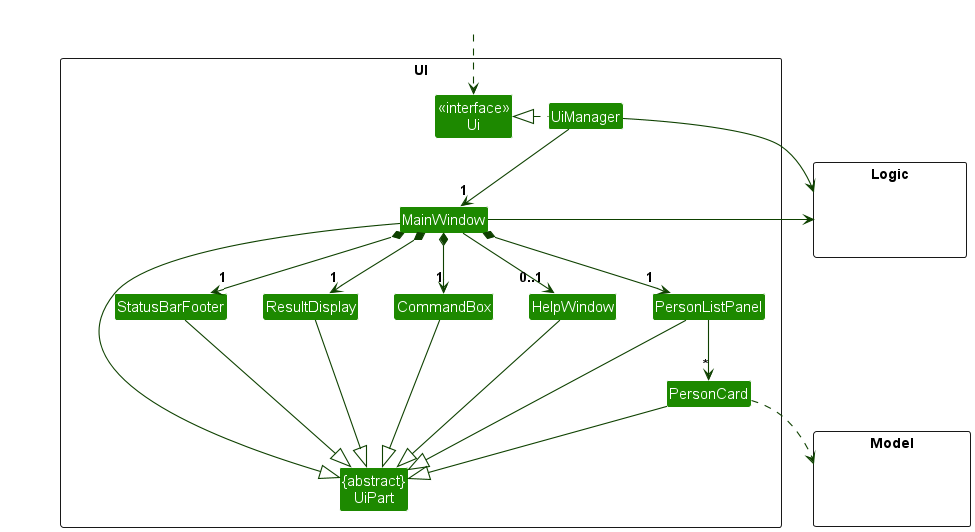

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

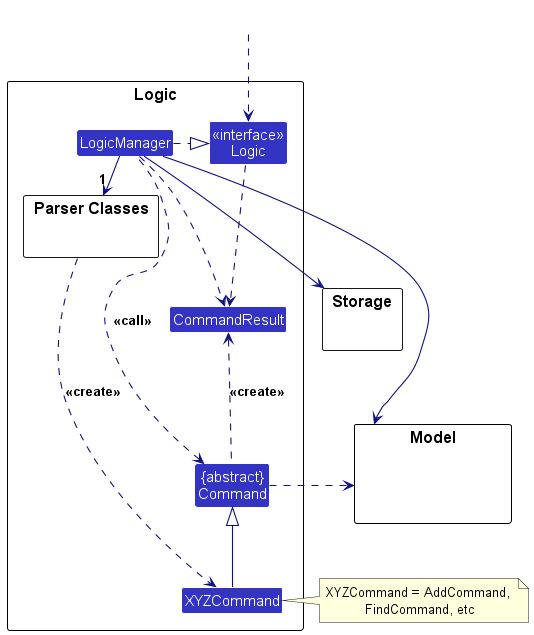

Here’s a (partial) class diagram of the Logic component:

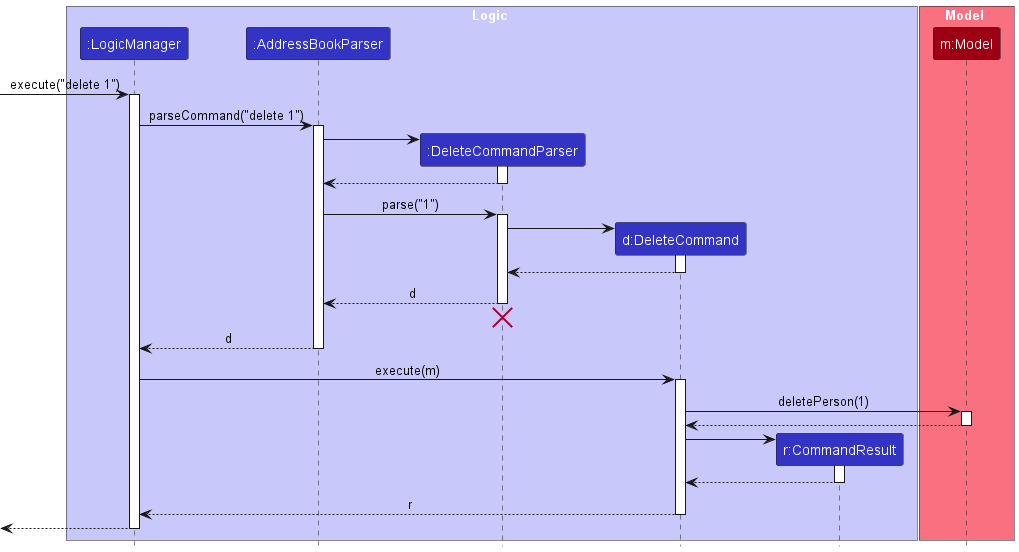

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

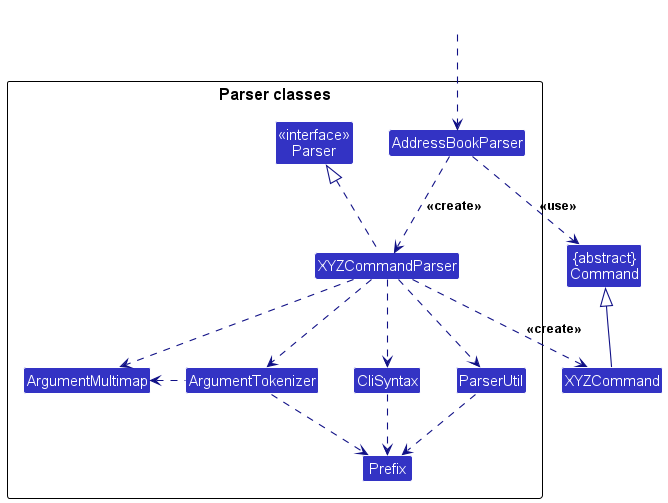

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

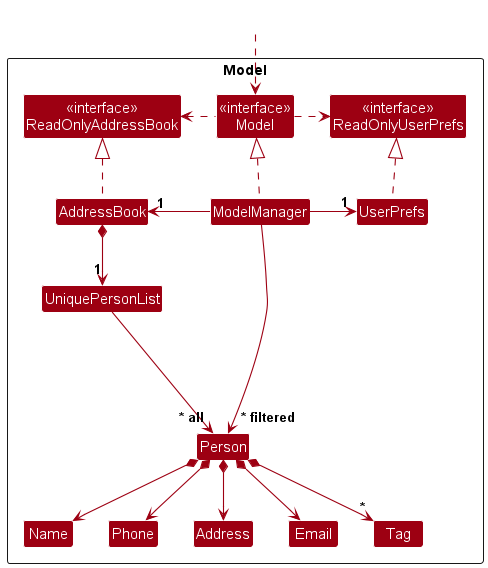

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.

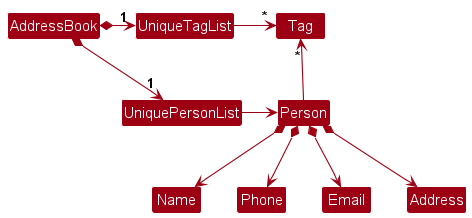

• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

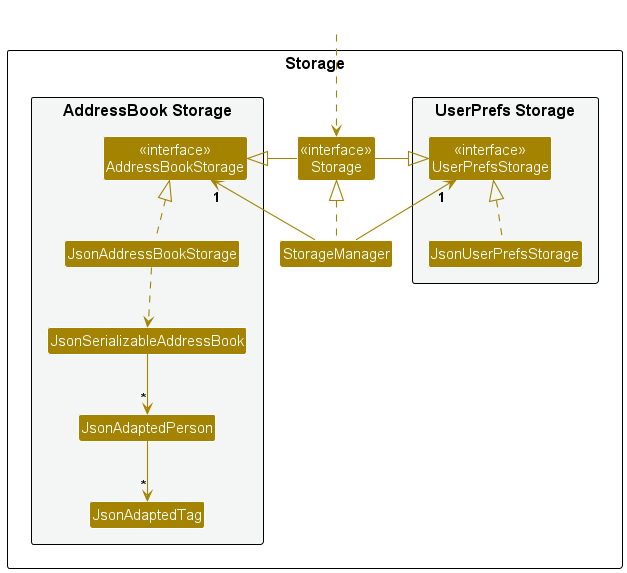

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

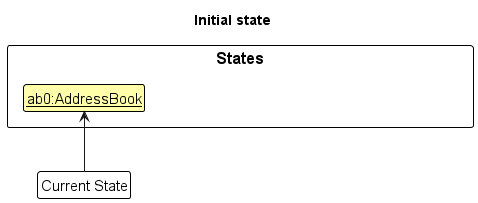

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

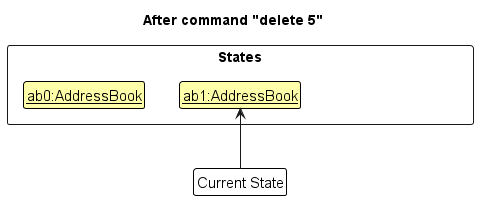

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

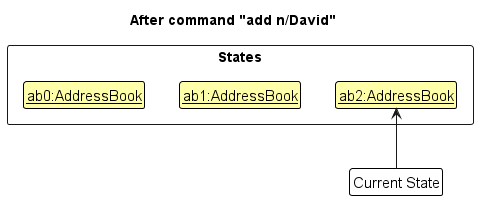

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

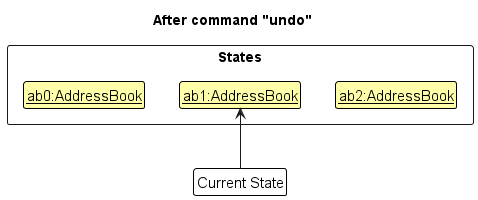

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

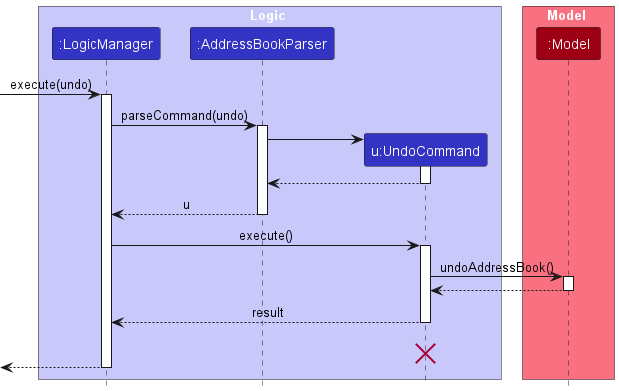

The following sequence diagram shows how an undo operation goes through the Logic component:

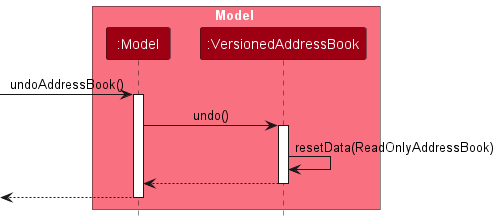

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

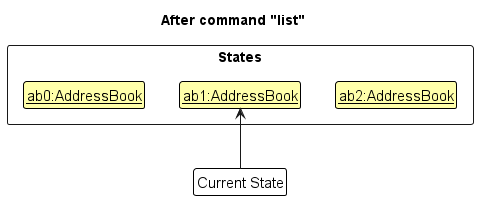

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

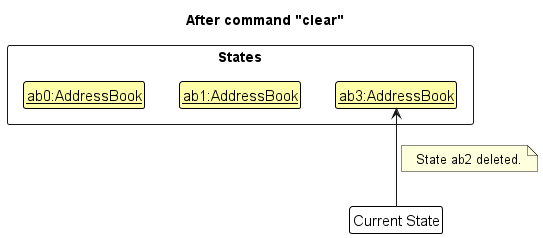

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

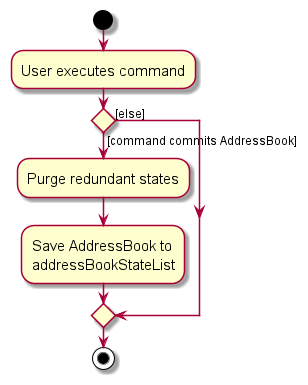

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• volunteer agency coordinators running a social service organisation managing volunteers who provide free tuition to underprivileged teenagers
• has a need to manage a significant number of contacts
• prefer desktop apps over other types
• can type fast
• hate using the mouse
• very efficient in using the CLI

Value proposition: CLI-based contact book to manage volunteer tutors. Tag people by skills, area, and availability. Easily find volunteers living nearby new tutees with appropriate skills and availability. Help easily track attendance to generate reports on volunteer hours.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	user	add a new person
* * *	user	delete a person	remove entries that I no longer need
* * *	user	find a person by name	locate details of persons without having to go through the entire list
* *	user	hide private contact details	minimize chance of someone else seeing them by accident
*	user with many persons in the address book	sort persons by name	locate a person easily
* * *	tuition manager	easily retrieve contact and next-of-kin information about a tutor or tutee	quickly contact them for urgent matters or emergencies
* * *	tutor manager	add subjects that a tutor is good at or that a tutee needs help with	easily pair up a tutee with a well-equipped tutor
* * *	member of an organisation	share relevant contact information for some or all tutors and tutees with my colleagues	coordinate and collaborate effectively
* * *	tuition manager	remove or archive information about selected tutors or tutees	view a less cluttered contact list without tutees who have graduated or tutors who have stopped volunteering
* *	tutor manager	see the tutors available in a particular area, with a map GUI, with tutors on the map color-coded by how well they match a new tutee	plan tutor recruitment drives effectively
* *	tutor manager	track subject demand trends over time	plan tutor recruitment drives effectively
* *	careless user	be reminded of duplicate names	ensure not to accidentally add the same person twice
* *	careless user	autocomplete subjects with tab and highlight newly created subjects in case it is just a typo of an existing one	ensure that I don’t accidentally spell or type the same subject differently (for example, “Computer science” and “computing studies”)
* *	careful user	see my edit history	review edits at the end to make sure there are no typos
* *	careful user	see my edit history	easily click to fix any typos (for example, 2h instead of 200h)
* *	tutor manager	see the tutors available in a particular area, with a map GUI	plan tutor recruitment drives effectively
* *	person interacting face-to-face with tutors and tutees	add and view images of tutors and tutees	more easily recognise their faces
* *	official representative of the organisation	generate a report about a selected tutor’s attendance and contribution	prepare official documentation for the tutors’ school, company, or other stakeholders about their volunteer work
* *	tutor manager	add custom notes for a tutor or tutee	take note of relevant information to convey to other stakeholders (such as tutee’s parents or to replacement tutors during handover)
* *	tutor manager	filter tutors by both subject expertise and availability	assign the most suitable tutor without manual cross-checking
* *	tuition manager	bulk-import volunteer information from CSV or Google Sheets	quickly onboard a large group of new tutors
* *	tuition manager	generate summary reports	monitor the overall progress and time given by my tutors
* *	tuition manager	tag contacts with categories such as tutor, tutee, or parent	easily filter or group them
* *	tuition manager	sort contacts by location	easily find nearby tutors
* *	tuition manager	add status flags like Active, On-leave, or Alumni	know whether to assign them tasks
* *	tutor manager	see all related contacts in one view	navigate relationships easily
* *	tuition manager	search a tutor with even his phone number	easily search for him rather than going through the list
* *	tutor manager	generate automatic pairing suggestions for new tutees	quickly find a suitable tutor for them
* *	tuition manager	maintain a changelog of all edits made to contact information	trace who updated which details in case of mistakes or disputes
* *	tuition manager	schedule reminders for upcoming sessions linked to tutors and tutees	prevent no-shows and help everyone remember their commitments
* *	careless user	enforce consistent tag formatting	prevent myself from creating duplicates like “math” and “Math.”
* *	careless user	get confirmation prompts before irreversible actions (for example, permanent delete)	prevent myself from accidentally remove important data
* *	careless user	have an undo function	revert unintended changes
* *	tutor manager	see the tutors available in a particular area	find a tutor for a new tutee
* *	careless user	get warnings when entering conflicting session times for the same tutor	prevent myself from accidentally double-book someone
* *	careful user	preview all my changes before saving them	avoid mistakes or typos

Use cases

(For all use cases below, the System is the AddressBook and the Actor is the user, unless specified otherwise)

Use case: Delete a person

MSS

1. User requests to list persons
2. AddressBook shows a list of persons
3. User requests to delete a specific person in the list

4. AddressBook deletes the person

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. AddressBook shows an error message.

    Use case resumes at step 2.

Use case: Retrieve contact and next-of-kin information

MSS

1. A tuition manager searches for a tutor or tutee in the contact list
2. The tuition manager selects their profile
3. The tuition manager opens the details page to view their phone number and next-of-kin information for urgent communication

Use case ends.

Use case: Add subjects to a tutor or tutee profile

MSS

1. A tutor manager searches for the person’s profile
2. The tutor manager selects “Edit Subjects”
3. The tutor manager chooses the relevant subject tags or creates new ones
4. The tutor manager saves the changes so the system updates pairing suggestions

Use case ends.

Use case: Share contact details with colleagues

MSS

1. An organisation member filters the contacts to find the relevant tutors or tutees
2. The organisation member selects tutors and tutees
3. The organisation member clicks “Share Contact Info”
4. The organisation member enters the colleage’s details
5. The organisation member sends the selected information securely

Use case ends.

Use case: Archive inactive tutors or tutees

MSS

1. A tuition manager searches for a tutor or tutee who has graduated or left
2. The tuition manager selects the profile
3. The tuition manager chooses the “Archive/Remove” option
4. The tuition manager confirms the action to move them out of the active list

Use case ends.

Use case: Filter tutors by subject and availability

MSS

1. A tutor manager opens the contact list
2. The tutor applies filters for subject expertise and time availability
3. The tutor reviews the filtered results
4. The tutor selects the best-matched tutor for a new tutee

Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The system should work on 64-bit environments.
5. The system should respond within two seconds.
6. The system should be usable by a novice who has never used an address book before.
7. The project is expected to adhere to a schedule that delivers a feature set weekly.
8. The product is not required to be used by multiple people simultaneously.
9. The product is not required to be usable online.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Private contact detail: A contact detail that is not meant to be shared with others
• Contact: An entry in the address book
• Tuition manager: The person that manages tutors
• Official representative of an organisation: The person who documents the tutor’s volunteer work for the organisation (school, company, etc.)
• Changelog: A log of edits made (e.g. changes to contact info)
• Status flags: Flags assigned to a tutor / tutee (e.g. Active / On leave / Alumni)
• Summary reports: A summary of important statistics (e.g. the overall progress and time given by the tutors)
• Map GUI: A map that can be displayed graphically in the UI.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }

Target User

Volunteer agency coordinators running a social service organisation managing volunteers who provide free tuition to underprivileged teenagers. Target users are very efficient in using the CLI and hate using the mouse.

Value Proposition

CLI-based contact book to manage volunteer tutors. Tag people by skills, area, and availability. Easily find volunteers living nearby new tutees with appropriate skills and availability. Help easily track attendance to generate reports on volunteer hours.
